When GMH fitted the six cylinder engine to the LC Torana, it was logical to also allow the all Aussie Trimatic auto transmission to follow suit. As for the manual transmission, the GM engineers knew the clutch from the four-cylinder Torana would be ill-equipped to handle the torque of the sixes, so they instead fitted a larger diameter 8.62 inch version (instead of the regular 6.25 inch version), with a heavier plate Belleville design diaphragm spring unit.
The suspension system used on all LC Torana's was basically the same as on previous models, although spring and damper rates were revised for the six cylinder versions, and the mounting points were naturally different. In addition to higher rated springs and shocks the six cylinder Torana's were equipped with plenty of rubber bushings to enhance ride quality and isolate road noise.
The rear suspension on all models remained a coil sprung design utilising four links, the two outer links being mounted directly on the coils and the inners were diagonal. Only the GTR scored a rear sway bar, and was the only model blessed with front disc brakes - although they could be optioned on all the other models. Because the fours ad tiny 12 inch wheels they simply couldn't take the 10 inch discs available on the sixes, and instead they got 8.4 inch units.
The wheel and tyre combinations were far from great, particularly by today's standards. The 13 inch wheels on the sixes were very narrow at 4.5 inches, as only the GTR got 5.5 inchers. The four cylinder Torana's had a misely 4 inch wide wheel to deal with. Worse still were the standard fare tyres, even the GTR not benefitting from radials, instead getting B70H x 13 red band crossplies.
Apart from the engine size and extra length, there were only a few other minor points that differentiated the fours from the sixes. The fuel tank was increased in size from eight to ten gallons, and the six cylinder engines were also fitted with a new type of pre-engagement starter motor.
Today the LC Torana is a highly sought after model, the "W-Style" frontal
treatment looking as good today as it did back in 1969.
- Years of Manufacture: 1969 - 1972
- Number Built: 74,627 (1,633 XU-1's)
- Price at Introduction:
- Torana 4: $1828
- Torana S 4: $1928
- Torana SL 4: $2088
- Torana S 6: $2226
- Torana SL 6: $2576
- Torana GTR: $2766
- Torana GTR XU-1: $3148
- (for 4 door option, add $130, for automatic
transmission add $260)
- Models:
- Torana 2 door
- Torana S 2 and 4 door
- Torana DeLuxe 2 and 4 door
- Torana SL 2 and 4 door
- Torana GTR 2 door
- Torana GTR XU-1 2 door
- Torana GTR XU-1 Bathurst
- From June 1971
- Torana 1200 (replaced Torana)
- Torana 1200 DeLuxe (replaced Torana
S)
- Torana 1600 DeLuxe (replaced Torana
SL)
- Date(s) of Introduction:
- All models excluding
XU-1:
28th October, 1969
- XU-1: June, 1971
- Re-naming of some models (see above):
June, 1971
- To Identify:
- Four cylinder models:
- Flat grille features vertical bars
- Two circular tail lights
- Six cylinder models:
- Centre of grille stands proud (outward)
forming "V" shape, with Holden badge
located in centre
- Grille features both vertical and
horizontal bars
- Attractive rectangular wrap-around
tail lights
- Fuel cap located at centre rear
between tail lights
- GTR:
- Three slanted vertical louvres
in lower section of front guards
- Lower flanks of car, including
grille receive "black-out" treatment
- Inclusion of both "GTR" and "Torana"
badging
- GTR XU-1
- Three slanted vertical louvres
in lower section of front guards
- Lower flanks of car, including
grille receive "black-out" treatment
- GTR XU-1 decals
- Front and rear spoilers
- Body:
- Unitary construction (Monocoque)
- Exterior Dimensions:
- Total Length:
- Four cylinder: 4120mm
- Six cylinder: 4387mm
- Total Width (all models):
- Total Height at kerb weight:
- Four cylinder: 1359mm
- Six cylinder: 1354mm
- GTR: 1346mm
- Wheelbase:
- Four cylinder: 2433mm
- Six cylinder: 2540mm
- Front Track:
- Four cylinder: 1295mm
- Six cylinder: 1316mm
- GTR: 1326mm
- Rear Track:
- Four cylinder: 1295mm
- Six cylinder: 1290mm
- GTR: 1301mm
- Kerb Weight:
- Four cylinder:
- Two door: 812kg
- Two door 1600: 854kg
- Four door: 838kg
- Four door 1600: 876kg
- Six cylinder:
- Two door: 993kg
- Four door: 1014.7kg
- GTR: 1013.3kg
- Turning Circle:
- Four cylinder: 9.5 metres
- Six cylinder: 11.1 metres
- Fuel Tank Capacity:
- Four cylinder: 36.4 litres
- Six cylinder: 45.5 litres
- XU-1: 77.3 litres
- Instruments:
- GTR:
- Speedometer with integrated
odometer
- Petrol gauge
- Oil pressure gauge
- Temperature gauge
- Ammeter
- Tachometer
- 71ci 1200 4 cylinder:
- Capacity: 70.7ci 1159cc
- Type: Conventional, watercooled four
stroke, reciprocating piston type with
4 cylinders
- Configuration: Front mounted, longitudinal,
inline
- Head: Pushrod and rocker actuated
ohv with two valves per cylinder
- Fuel System: Single Zenith downdraft
type carburettor
- Bore and Stroke: 77.7mm x 61.0mm
- Power: 56.2bhp (41.9kW) at 5400rpm
- Torque: 89.8Nm at 3000rpm
- Compression Ratio: 8.5:1
- Series 70 1200 4 cylinder:
- Capacity: 70.7ci 1159cc
- Type: Conventional, watercooled four
stroke, reciprocating piston type with
4 cylinders
- Configuration: Front mounted, longitudinal,
inline
- Head: Pushrod and rocker actuated
ohv with two valves per cylinder
- Fuel System: Single Zenith downdraft
type carburettor
- Bore and Stroke: 77.7mm x 60.9mm
- Power: 68.9bhp (51.4kW) at 5800rpm
- Torque: 92.7Nm at 4200rpm
- Compression Ratio: 9.0:1
- 1600 4 cylinder:
- Capacity: 97.5ci 1599cc
- Type: Conventional, watercooled four
stroke, reciprocating piston type with
8 cylinders
- Configuration: Front mounted, longitudinal,
inline
- Head: Pushrod and rocker actuated
ohv with two valves per cylinder
- Fuel System: Single Zenith downdraft
type carburettor
- Bore and Stroke: 85.7mm x 66.8mm
- Power: 80bhp (59.7kW) at 5500rpm
- Torque: 129.6Nm at 3200rpm
- Compression Ratio: 9.0:1
|
- 138 6 cylinder :
- Capacity: 138ci 2250cc 2.263 litre
- Type: Conventional, watercooled four
stroke, reciprocating piston type with
6 cylinders
- Configuration: Front mounted, longitudinal,
inline
- Head: Pushrod and rocker actuated ohv
with two valves per cylinder
- Fuel System: Bendix-Stromberg single
barrel downdraft type carburettor
- Bore and Stroke: 79.4 x 76.2mm
- Power: 95bhp (70.9kW) at 4600rpm
- Torque: 162Nm at 1600rpm
- Compression Ratio: 9.2:1
- 161 6 cylinder :
- Capacity: 161ci 2640cc 2.834 litre
- Type: Conventional, watercooled four
stroke, reciprocating piston type with
6 cylinders
- Configuration: Front mounted, longitudinal,
inline
- Head: Pushrod and rocker actuated ohv
with two valves per cylinder
- Fuel System: Bendix-Stromberg single
barrel downdraft type carburettor
- Bore and Stroke: 85.7 x 76.2mm
- Power: 114bhp (85.0kW) at 4400rpm
- Torque: 211.9Nm at 2000rpm
- Compression Ratio: 9.2:1
- 161S 6 cylinder (GTR):
- Capacity: 161ci 2640cc
- Type: Conventional, watercooled four
stroke, reciprocating piston type with
6 cylinders
- Configuration: Front mounted, longitudinal,
inline
- Head: Pushrod and rocker actuated ohv
with two valves per cylinder
- Fuel System: Two barrel Bendix-Stromberg
downdraft type carburettor
- Bore and Stroke: 85.7 x 76.2mm
- Power: 125bhp (93.2kW) at 4800rpm
- Torque: 202.5Nm at 2800rpm
- Compression Ratio: 9.2:1
- 186 6 cylinder (GTR XU-1):
- Capacity: 186ci 3050cc
- Type: Conventional, watercooled four
stroke, reciprocating piston type with
6 cylinders
- Configuration: Front mounted, longitudinal,
inline
- Head: Pushrod and rocker actuated ohv
with high performance camshaft, 161 head
with larger inlet and exhaust valves,
V8 valve springs. (Note: A longer duration,
higher lift camshaft was used in the
XU-1 Bathurst model)
- Fuel System: Triple 1.5 inch 150 cds
Stromberg sidedraught carburettors. (Note:
Needles changed for XU-1 Bathurst model)
- Bore and Stroke: 3.625 x 3.00 inches
(92.1 x 76.2mm)
- Power: 160bhp (119.36kW) at 5200rpm
- Torque: 190lb-ft (256.5Nm) at 3600rpm
- Compression Ratio: 10.05:1
- Ignition and Electrical:
- 12 volt with 35 amp alternator
- Bosch two-contact voltage regulator
standard on all models
- Lucas electronic voltage regulator
optional on six cylinder models
- 38 amp/hour batteries fitted
to 4 cylinder models
- 44 amp/hour batteries fitted
to 6 cylinder models
- Coil and distributor ignition
on all models
- Exhaust:
- Cast iron manifold and single pipe
- XU-1: Twin manifolds, two inch system
and sports muffler
- XU-1 Bathurst: Modified exhaust pipes
and muffler
- 3 speed
Manual Transmission:
- 1st: 3.07:1
- 2nd: 1.68:1
- 3rd: 1.00:1
- Reverse: 3.59:1
- 4
speed Manual Transmission:
- 1st: 3.765:1
- 2nd: 2.213:1
- 3rd: 1.404:1
- 4th: 1.00:1
- Reverse: 3.707:1
- 4 speed "1600" Manual Transmission:
- 1st: 2.78:1
- 2nd: 1.98:1
- 3rd: 1.41:1
- 4th: 1.00:1
- Reverse: 3.06:1
- 4 speed GTR and GTR XU-1 Manual
Transmission:
- 1st: 3.43:1
- 2nd: 2.16:1
- 3rd: 1.37:1
- 4th: 1.00:1
- Reverse: 3.32:1
- M21 4 speed GTR XU-1 Bathurst
Manual Transmission:
- 1st: 2.54:1
- 2nd: 1.83:1
- 3rd: 1.255:1
- 4th: 1.00:1
- Reverse: 2.54:1
- Tri-Matic Automatic Transmission:
- 1st: 2.40:1
- 2nd: 1.48:1
- 3rd: 1.00:1
- Reverse: 1.92:1
- Clutch:
- Four Cylinder: 6.25", single dry plate diaphram spring
actuation type
- Six Cylinder: 8.62" with heavier plate Belleville design diaphragm spring
- Strengthened for GTR XU-1 Bathurst
model
- Rear Axle Ratio:
- 71ci engine: 3.89:1
- Series 70 and 1600 engine: 4.125:1
- Manual S, SL and GTR: 3.08:1
- TriMatic S and SL: 2.78:1
- XU-1: 3.36:1 (3.08:1 optional)
- Limited slip differential standard
on XU-1, optional on all other models
- Top Speed in Gears:
- 138ci 2.25 litre 6 cylinder 3 speed
manual:
- 1st: 34 mph (55 km/h)
- 2nd: 68 mph (109 km/h)
- 3rd: 89 mph (143 km/h)
- 0-100 km/h: 17.6 seconds
- Standing Quarter Mile (400 metres):
19.8 seconds
- 161ci 2.834 litre 6 cylinder 4 speed
manual:
- 1st: 30 mph (48 km/h)
- 2nd: 50 mph (80 km/h)
- 3rd: 76 mph (122 km/h)
- 4th: 92 mph (148 km/h)
- 0-100 km/h: 15.3 seconds
- Standing Quarter Mile (400 metres):
19.0 seconds
- 186ci 3048cc 6 cylinder GTR XU-1 4
speed manual:
- 1st: 32 mph (51.5 km/h)
- 2nd: 52 mph (83.7 km/h)
- 3rd: 86 mph (138.5 km/h)
- 4th: 112 mph (180.3 km/h)
- 0-100 km/h: 9.2 seconds
- Standing Quarter Mile (400 metres):
16.2 seconds
- Suspension:
- 4 cylinder models:
- Front: Independent, coil springs,
concentric shock absorbers, short
and long upper and lower ball jointed
control arms with rubber mounted
pivot points. Box section front crossmember
rearward extension arms and diagonal
compression struts
- Rear: Four link type, coil springs,
large rubber bushes and shock absorbers
mounted behind Salisbury type live
rear axle
- 6 cylinder models:
- Front: Independent, higher rate
coil springs, concentric high control
shock absorbers, short and long upper
and lower ball jointed control arms
with rubber mounted pivot points.
Box section front crossmember rearward
extension arms and diagonal compression
struts
- Rear: Four link type, coil springs,
large rubber bushes and shock absorbers
mounted behind Holden "Banjo" type
live rear axle
- Steering:
- Brakes:
- 71ci 4 cylinder model:
- Front: 8.0 inch (203mm) drums standard,
8.4 inch (213.4mm) discs optional
- Rear: 8 inch (203mm) drums
- Series 70 4 cylinder model:
- Front: 10.0 inch (254mm) drums
standard
- Rear: 8 inch (203mm) drums
- 1200 4 cylinder model:
- Front: 8.0 inch (203mm) drums standard,
8.4 inch (213.4mm) discs optional
- Rear: 8 inch (203mm) drums
- 1200 DeLuxe and 1600 4 cylinder models:
- Front: 8.4
inch (213.4mm) discs standard
- Rear: 8 inch (203mm) drums
- 6 cylinder models (excluding GTR):
- Front: 9.0 inch (229mm) drums standard,
10 inch (254mm) discs optional
- Rear: 9 inch (229mm) drums
- GTR and GTR XU-1:
- Front: 10 inch (254mm)
discs standard (Note: XU-1 models
had the dust shields removed)
- Rear: 9 inch (229mm) drums
- Wheels:
- 4 cylinder models: 4.00J x 12
- 6 cylinder S and SL: 4.50JJ x 12
- GTR and GTR XU-1: 5.50JJ x 13
- Tyres:
- 4 cylinder Torana 1200, S and SL models:
5.50 x 12 blackwall crossplies standard,
6.20L12 blackwall or white band crossplies
optional
- 4 cylinder Torana 1200 DeLuxe and 1600
models: 6.20L12 blackwall
crossplies standard
- 6 cylinder Torana S and SL models:
A78L13 blackwall crossplies standard,
A78L13 white band crossplies or B70H13
red band crossplies optional

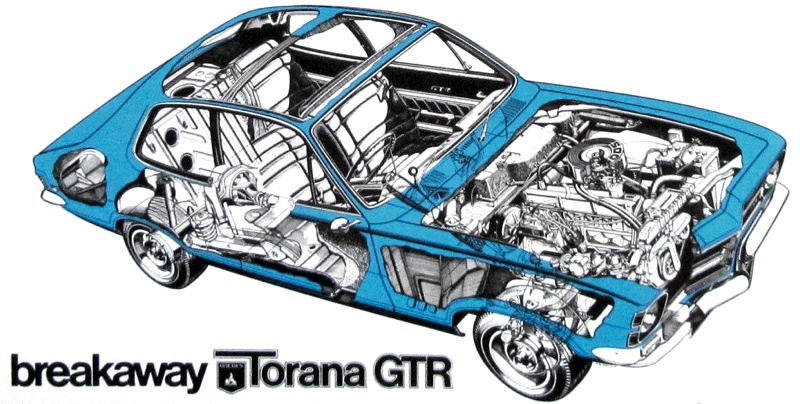

- GTR and GTR XU-1 models: B70H13
red band crossplies standard
Holden Torana LC 1600 OHC
Holden's Mighty Little Mile Eater:
(circa 1970)
For everyone whose been looking for a small car with a ton more go, Holden introduces
the new 1600 overhead cam Torana, you have to drive it to understand there's
a small car that can eat the miles so easily. Torana 1600 overhead cam - Holden's
mighty little mile eater...
|
